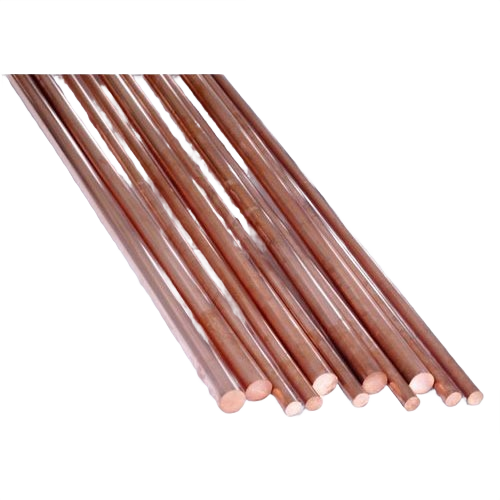

Aluminium Bronze Rods

Bronze Rods / Aluminium Bronze Rods

Aluminium Bronze Rods are high-strength copper alloy bars designed for demanding industrial applications. They offer exceptional wear resistance, excellent corrosion protection, high load-bearing capacity, and superior durability, making them ideal for bushings, bearings, gears, marine hardware, valve components, and heavy engineering applications.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties

Aluminium Bronze Roads Specification

BS:2872 CA-103
104
ADM1076D
IS:10569/83
BS:1400AB1
AB2
IS:305 AB1

Product Details :

Minimum Order Quantity	1000 kil
Type	Rod
Usage	Manufacturing, Construction, Industrial
Material	Aluminium And Bronze

Specification :
Aluminum Bronze	ASTM B 111 C60800 ASME SB 111 C60800 EN 12451 CuAl5As CW200G

IS 10569/05 NR. EQUIVALENT SPEC. BS 2872/86 CA103, ASTMBC62300

Chemical Requirements
Copper	Remainder
Aluminium	8.5 to 10.0%
Iron	4.0 % MAX
Nickel	(Iron + Nickel)
Manganese	0.50% max
Tin	0.10% max
Zinc	0.40% max
Silicon	0.10% max
Total Imp. Excl. Mn	0.50% max

Physical Properties
Condition	Size	T.S. MPa	EL% Min
Annealed / As Manufactured	6 to 15 15 to 50 50 to 80 80 & above	600 575 540 515	15% 25% 25% 25%
Fabrication Properties
Capacity for being Cold formed Hot formed Machinability rating Forgeability rating Suitability for soldering Suitability for Brazing Suitability for welding		Excellent Good 50% 75% Poor Fair Good
Uses
Corrosion resistant & non sparking alloy mainly used in components which remains in contact with saline water, oil refinery, valves & fittings and also used for worm gears, valve stems, high pressure valve etc.
