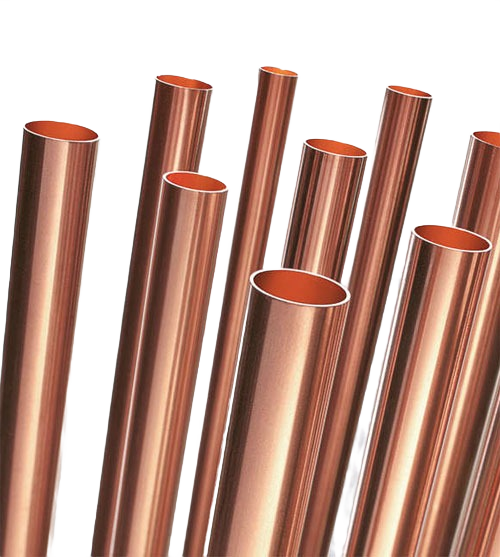

Cu-Dhp Copper Cw024a (En 1412) Copper Tube

Copper Tube / Cu-Dhp Copper Cw024a (En 1412) Copper Tube

Cu-DHP Copper CW024A (EN 1412) Copper Tubes are premium deoxidized high-phosphorus copper tubes offering excellent corrosion resistance, superior thermal conductivity, and exceptional workability. Manufactured to EN 1412 standards, they are ideal for plumbing, HVAC systems, refrigeration, heat exchangers, medical gas pipelines, and industrial applications requiring reliable, long-lasting performance.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

We also have with us rich product knowledge and process expertise to successfully handle the demands of offering DHP Copper Tubes. These are made of superior grade of copper and find usage in different industry sectors because of their inherent properties like

Flawless finish quality
Durable finish standards
Rigid construction
Reliable performance
Corrosion & wear resistance

These copper tubes are also accurate in dimensions and are made available by us in customized finish specifications at highly competitive prices. Further, these deoxidized high residual DHP copper tubes are deoxidized with phosphorous and feature

High stress and tensile strength
High fatigue strength
Superior thermal conductivity

Other than this, the copper tubes also allow an increase in re-crystallization temperatures from 150K to 200K. With our expertise in offering products like DTP copper, refrigeration copper tubes, air conditioning copper tubes, DTP copper alloy, relay copper tubes and others, these copper tubes/copper pipes are used for different purposes like

Refrigeration copper tubes
Air conditioning copper tube

Product
Some of the areas these are used in include

Refrigeration
Air Conditioning
Thermostat
Relay
Heat Exchangers (Heat Transfer Tubes)

Specifications

DHP Copper

ASTM B 68 C 12200
ASTM B 75 DLP C12000
BS 2871 Part 2 C 101
BS 2871 Part 3 C 106
EN 12451 DHP
JIS H3300 C 1220

Chemical Composition

Chemical Requirements
Copper	99.85% min
Phosphorus	0.013 to 0.05%
Total Imp. Excl. Mn	0.06% max

Physical Properties
Condition	T.S.Kg/mm 2	EL% Min
Annealed	21.5	33%
As manufactured	23.5	13%

Fabrication Properties
Uses
Capacity for being	-
Cold worked	Excellent
Hot formed	Excellent
Suitability for soldering	Good
Suitability for Brazing	Good
Immunity to hydrogen	Excellent
Embrittlement	-
General Engineering Purpose & Electrical Component
