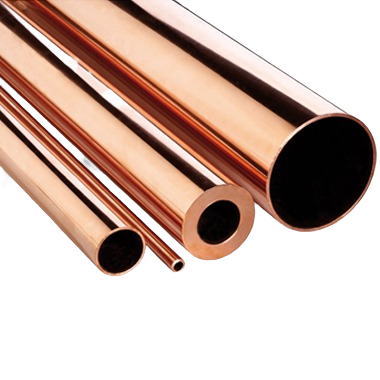

Asme Sb 111 C70600 Copper Nickel Tube

Cupro Nickel Pipe (90/10) / Asme Sb 111 C70600 Copper Nickel Tube

ASME SB111 C70600 Copper Nickel Tubes are high-performance 90/10 copper-nickel alloy tubes designed for exceptional corrosion resistance and durability in seawater applications. They offer excellent thermal conductivity, erosion resistance, and biofouling protection, making them ideal for condensers, heat exchangers, marine piping, desalination plants, offshore structures, and power generation systems.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

C70600 , Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought coppernickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance.

TYPICAL USES for C70600 Copper Nickel "90/10":

AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
PLUMBING: Flanges

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuNi10Fe1Mn
Europen	CuNi10Fe1Mn
BS	CN 102
JIS	C 7060
Russian	MNZMo10-1-1

Chemical Composition

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	1.0 - 1.8	0.05	1	9.0 - 11.0	1
Nominals	88.6000	1.4000	-	-	10.0000	-

Physical Properties

Product Property	US Customary
Coefficient of Thermal Expansion	9.5 10−6Per °F (68-572 F)
Density	0.323 lb/in3 at 68 F
Electrical Conductivity	9 %IACS @ 68 F
Electrical Resistivity	115.0 ohms-cmil/ft @ 68 F
Melting Point - Liquidus	2100 F
Melting Point - Solidus	2010 F
Modulas of Elasticity in Tension	18000 ksi
Modulus of Rigidity	6800 ksi
Specific Gravity	8.94
Specific Heat Capacity	0.09 Btu/lb/°F at 68 F
Thermal Conductivity	26.0 BTU in/hr.ft2.°F @ 68 F

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	8mm To 100 mm
HEX	10mm To 60mm>
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	AS per Specification
