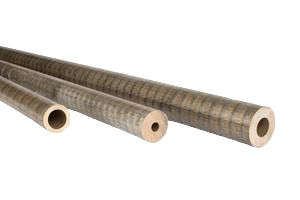

C96900 Nickel Tin Bronze Spinodal Hollow Rods

Nickel Aluminium Bronze Hollow Rods / C96900 Nickel Tin Bronze Spinodal Hollow Rods

C96900 Nickel Tin Bronze Spinodal Hollow Rods are advanced copper alloy tubes engineered for exceptional strength, wear resistance, and fatigue performance. They offer outstanding corrosion resistance, high load-bearing capacity, and excellent dimensional stability, making them ideal for bushings, bearings, aerospace components, marine hardware, precision engineering, and high-performance industrial applications.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

CATEGORY	ASTM	BS	EN	JIS	DIN	ISO	IS
Nickel Tin Bronze Spinodal	C96900		CW302G

C96900 Nickel Tin Bronze Spinodal is ideal for using in tough environments. The alloy possess high strength, anti-galling properties, non-magnetic, excellent machinability, corrosion resistance and good bearing properties.

It is used in bushings and bearings for aircraft, industrial equipment, and heavy equipment. It is also used for oil and gas drilling hardware including rotary steerable housings, kelly valve seats and pressure housings.

C96900 in the hot worked and spinodally hardened (AT/TX00) condition exhibits tensile strength up to 140 ksi in a copper nickel tin alloy with excellent machinability.

Typical Applications

Defense, Electronics, Heavy Equipment, Marine, Oil & Gas, Performance Racing, Plastic Mold Tooling

Chemical Composition

	Cu	Ni	Fe	Mn	Nb	Pb	Sn	Zn
Min/Max	Reminder	14.5-15.5	0.05 max	.05-.3 max	0.1 max	0.02 max	7.5-8.5	0.5max
Nominals	-	-

Physical Properties

Density	0.325	Lbs. per cubic inch @ 68°F (annealed)
Modulus	21	Elastic modulus in tension x 106 P.S.I.
Electrical Conductivity	9	% IACS at 68°F (annealed)
Thermal Conductivity	22	BTU per foot per hour per °F at 68°F (annealed)
Thermal Expansion	9.1	Inches per inch x 10-6 from 68°F to 572°F
