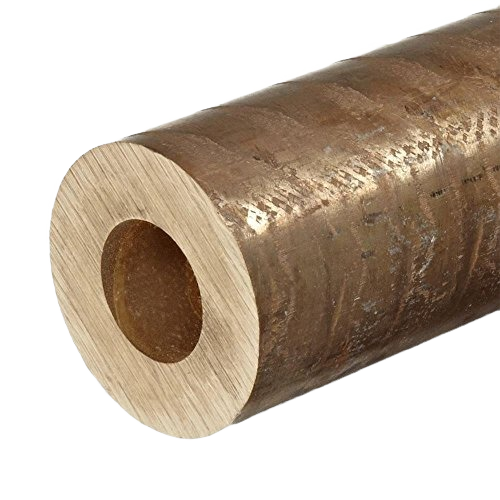

Nickel Aluminium Bronze Hollow Rods / Cw307g Nickel Aluminium Bronze Hollow Bar
CW307G Nickel Aluminium Bronze Hollow Bars are high-strength copper alloy tubes designed for demanding industrial and marine applications. They offer exceptional wear resistance, superior corrosion protection, excellent load-bearing capacity, and long service life, making them ideal for bushings, bearings, valve components, hydraulic systems, marine hardware, and heavy engineering equipment.
| CATEGORY | ASTM | BS | EN | JIS | DIN | ISO | IS |
| Nickel Aluminum Bronze | C63020 | CA104 | CW307G | H3100 C6301 | 2.0978 | 1338- CuAl11Ni5Fe5 | |
| NES 833 - Nickel Aluminum Bronze | C62730 | CA 104 | CW307G | C6301 | 2.0966 | CuAl10Ni5Fe4 |
Typical Applications:
Equivalent Specifications
| SPECIFICATIONS | DESIGNATION |
|---|---|
| ISO | CuAl0Ni5Fe4 |
| European | CuAl0Ni5Fe4 |
| BS | CA 104 |
| JIS | C 6301 |
| Russian | BrAZN10.4.4 |
Chemical Composition
| Al | Cu | Fe | Mn | Ni | Si | Sn | Zn | |
|---|---|---|---|---|---|---|---|---|
| Min/Max | 9.0 - 11.0 | Rem | 2.0 - 4.0 | 1.5 | 4.0 - 5.5 | 0.25 | 0.2 | 0.3 |
| Nominals | 10.0000 | 82.0000 | 3.0000 | - | 5.0000 | - | - | - |
Physical Properties
| End Product | Specification |
|---|---|
| Bar | AMS 4640, ASME SB150, ASTM B150, FEDERAL QQ-C-450, SAE J463, J461 |
| Bar, Forging | ASTM B124 |
| Bolts | ASTM F468 |
| Forgins, Die | AMS 4640, ASTM B283, MILITARY MIL-B-16166 |
| Nuts | ASTM F467 |
| Plate | ASTM B171, FEDERAL QQ-C-450 |
| Plate, Condenser Tube | ASME SB171, ASTM B171 |
| Rod | AMS 4640, ASME SB150, ASTM B150, SAE J463, J461 |
| Rod, Forging | ASTM B124 |
| Screws | ASTM F468 |
| Shapes | AMS 4640, ASTM B150, SAE J463, J461 |
| Shapes, Forging | ASTM B124 |
| Sheet | FEDERAL QQ-C-450 |
| Strip | FEDERAL QQ-C-450 |
| Tube | AMS 4640 |
Fabrication
| Joining Technique | Suitability |
|---|---|
| Brazing | Fair |
| Butt Weld | Good |
| Capacity for Being Cold Worked | Poor |
| Capacity for Being Hot Formed | Good |
| Coated Metal Arc Welding | Good |
| Forgeability Rating | 75 |
| Gas Sheilded Arc Welding | Good |
| Machinability rating | 30 |
| Oxyacetylene Welding | Not recommended |
| Seam Weld | Good |
| Soldering | Not recommended |
| Spot Weld | Good |
Physical Properties
| Product Property | US Customary | Metric |
|---|---|---|
| Coefficient of Thermal Expansion | 9.0 10−6Per °F (68-572 F) | 16.2 · 10 6? per °C (20-300 C) |
| Density | 0.274 lb/in3 @ 68 F | 7.58 gm/cm3 @ 20 C |
| Electrical Conductivity | 7 %IACS @ 68 F | 0.041 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 116.0 ohms-cmil/ft @ 68 F | 19.28 microhm-cm @ 20 C |
| Melting Point Liquid US | 1930 F | 1054 C |
| Melting Point Solid US | 1895 F | 1035 C |
| Modulas of Elasticity in Tension | 17500 ksi | 121000 MPa |
| Modulas of Rigidity | 6400 ksi | 44130 MPa |
| Specific Gravity | 7.58 | 7.58 |
| Specific Heat Capacity | 0.09 Btu/lb/°F @ 68 F | 377.1 J/kg · °K at 293 K |
| Thermal Conductivity | 22.6 Btu · ft/(hr · ft2 ·°F) @ 68 F | 39.1 W/m · °K at 20 C |
Sizes Available
| ROUND RODS | 8mm To 70 mm |
| HEX | 10mm To 60mm |
| SQUARE | 10mm To 60mm |
| FLAT | 10mm Min Thickness and max Width 120mm |
| BILLETS | Up to 200 mm |
| INGOTS | As per Specification |
