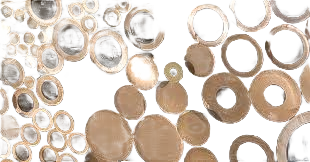

Silicon Aluminium Bronze Hollow Rods / C65100 Low Silicon Bronze Hollow Rods
C65100 Low Silicon Bronze Hollow Rods are precision-engineered copper alloy tubes offering excellent strength, corrosion resistance, and good wear performance. They provide reliable machinability, durability, and formability, making them ideal for bushings, bearings, marine hardware, electrical components, valve parts, and a wide range of industrial engineering applications.
| CATEGORY | ASTM | BS | EN | JIS | DIN | ISO | IS |
| Low Silicon Bronze "B" | C65100 | CW115C | 2.049 | 1187-CuSi1 |
C65100 Low Silicon Bronze "B" is an engineering alloy resistant to corrosion as copper itself, but much stronger, and with good fatigue endurance. The alloy is appreciated for its brazing ability, strength, corrosion resistance and electrical properties and serves as one of the most weldable copper alloys. The alloy can be joined by using resistance welding, soldering or brazing. The alloy is joined by gas shield arc welding, spot welding and also by oxyacetylene welding.
Typical Applications:
Equivalent Specifications
| SPECIFICATIONS | DESIGNATION |
|---|---|
| ISO | CuSi1 |
| Europen | CuSi1 |
Chemical Composition
| Cu | Fe | Pb | Mn | Si | Zn | |
|---|---|---|---|---|---|---|
| Min/Max | Rem | 0.8 | 0.05 | 0.7 | 0.80 - 2.0 | 1.5 |
| Nominals | 98.5 | - | - | - | 1.5 | - |
| End Product | Specification |
|---|---|
| Bar | ASME SB98, ASTM B98 |
| Bolts | ASTM F468 |
| Nuts | ASTM F467 |
| Pipe | ASTM B315 |
| Plate | ASTM B96 |
| Plate, Clad | ASTM B432 |
| Rod | ASME SB98, ASTM B98 |
| Screws | ASTM F468 |
| Shapes | ASME SB98, ASTM B98 |
| Sheet | ASTM B96 |
| Strip | ASTM B96 |
| Studs | ASTM F468 |
| Tube | ASTM B315 |
| Wire | ASTM B99, B105 |
Fabrication:
| Joining Technique | Suitability |
|---|---|
| Brazing | Excellent |
| Butt Weld | Excellent |
| Capacity for Being Cold Worked | Excellent |
| Capacity for Being Hot Formed | Excellent |
| Coated Metal Arc Welding | Fair |
| Gas Shielded Arc Welding | Excellent |
| Machinability Rating | 30 |
| Oxyacetylene Welding | Good |
| Seam Weld | Good |
| Soldering | Excellent |
| Spot Weld | Excellent |
Physical Properties:
| Product Property | US Customary | Metric |
|---|---|---|
| Coefficient of Thermal Expansion | 9.9 10−6Per °F (68-212 F) | 17.8 10−6Per °F (20-100 C) |
| Density | 0.316 lb/in3 at 68 F | 8.75 gm/cm3 @ 20 C |
| Electrical Conductivity | 12 %IACS @ 68 F | 0.07 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 86.4 ohms-cmil/ft @ 68 F | 14.36 microhm-cm @ 20 C |
| Melting Point - Liquidus | 1940 F | 1060 C |
| Melting Point - Solidus | 1890 F | 1032 C |
| Modulas of Elasticity in Tension | 17000 ksi | 117000 MPa |
| Modulus of Rigidity | 6400 ksi | 44130 MPa |
| Specific Gravity | 8.75 | 8.75 |
| Specific Heat Capacity | 0.09 Btu/lb/°F at 68 F | 377.1 J/kg · oK at 293 K |
| Thermal Conductivity | 33.0 BTU in/hr.ft2.°F ) at 68F | 57.1 W/m · oK at 20 C |
Sizes Available
| ROUND RODS/BARS | 8mm To 70 mm |
| HEX | 10mm To 60mm |
| SQUARE | 10mm To 60mm |
| FLAT | 10mm Min Thickness and max Width 120mm |
| BILLETS | Up to 200 mm |
| INGOTS | As per Specification |
