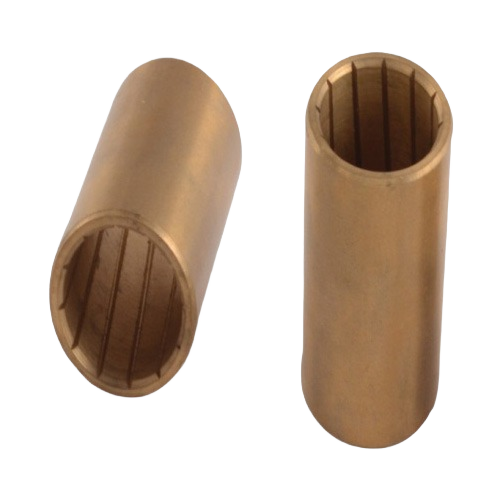

C65620 Silicon Bronze Hollow Rods

C65620 Silicon Bronze Hollow Rods are high-quality copper alloy tubes engineered for excellent strength, corrosion resistance, and long-lasting performance. They provide superior wear resistance, good machinability, and reliable durability, making them ideal for bushings, bearings, marine hardware, valve components, electrical equipment, and demanding industrial engineering applications.

  • Description
  • Chemical Composition
  • Physical Properties
  • Sizes Available
CATEGORY
ASTMBSENJISDINISOIS
Silicon Bronze (AMS 4616)C65620 CW009A  CuSi3Fe2Sn3


C65620 Silicon Bronze Rods (AMS 4616) is an engineering alloy resistant to corrosion as copper itself, but much stronger, and with good fatigue endurance. The alloy is appreciated for its brazing ability, strength, corrosion resistance and electrical properties and serves as one of the most weldable copper alloys. The alloy can be joined by using resistance welding, soldering or brazing. The alloy is joined by gas shield arc welding, spot welding and also by oxyacetylene welding.

Typical Applications:

  • Electrical: Sculptures,Electrical,Pole Line Hardware,Motors,Rotor Bar
  • Fasteners: Screws,Rivets,Burrs,Nuts,Nails,Cotter Pins,Clamps,Bolts,Hinges
  • Industrial: Screen Cloth,Wear Plates,Screen Plates,Shafting,Wire,Welded Pressure Vessels,Oil Refinery Plumbing Tube,Bearing Plates,Butts
  • Marine:  Vessel Hardware ,Propeller Shaft



Equivalent Specifications

SPECIFICATIONSDESIGNATION
ISOCuSi1
EuropenCuSi1

Chemical Composition Chemical Composition:


 CuFePbMnNiSi
Min/MaxRem0.80.050.70.80 - 2.01.5
Nominals98.5---1.5-


Specifications:


End ProductSpecification
BarASME SB98, ASTM B98
BoltsASTM F468
NutsASTM F467
PipeASTM B315
PlateASTM B96
Plate, CladASTM B432
RodASME SB98, ASTM B98
ScrewsASTM F468
ShapesASME SB98, ASTM B98
SheetASTM B96
StripASTM B96
StudsASTM F468
TubeASTM B315
WireASTM B99, B105


Fabrication:


Joining TechniqueSuitability
BrazingExcellent
Butt WeldExcellent
Capacity for Being Cold WorkedExcellent
Capacity for Being Hot FormedExcellent
Coated Metal Arc WeldingFair
Gas Shielded Arc WeldingExcellent
Machinability Rating30
Oxyacetylene WeldingGood
Seam WeldExcellent
SolderingGood
Spot WeldExcellent

Physical Properties:


Product PropertyUS CustomaryMetric
Coefficient of Thermal Expansion9.9 10−6Per °F (68-212 F)17.8 10−6Per °F (20-100 C)
Density0.316 lb/in3 at 68 F8.75 gm/cm3 @ 20 C
Electrical Conductivity12 %IACS @ 68 F0.07 MegaSiemens/cm @ 20 C
Electrical Resistivity86.4 ohms-cmil/ft @ 68 F14.36 microhm-cm @ 20 C
Melting Point - Liquidus1940 F1060 C
Melting Point - Solidus1890 F1032 C
Modulas of Elasticity in Tension17000 ksi117000 MPa
Modulus of Rigidity6400 ksi44130 MPa
Specific Gravity8.758.75
Specific Heat Capacity0.09 Btu/lb/°F at 68 F377.1 J/kg · oK at 293 K
Thermal Conductivity33.0 BTU in/hr.ft2.°F57.1 W/m · oK at 20 C

Sizes Available

ROUND RODS8mm To 70 mm
HEX10mm To 60mm
SQUARE10mm To 60mm
FLAT10mm Min Thickness and max Width 120mm
BILLETSUp to 200 mm
INGOTSAs per Specification
